Name: <em>XD RFID</em> Tool Cart: Tool tracking
Brand: NEXESS
SKU: 6570
Rating: 5 (1 reviews)

XD RFID TOOL CART for tool tracking and management

Hardware

NEXCAP® offering:

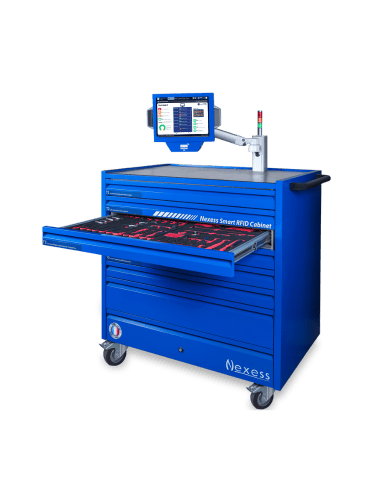

The XD RFID Tool Cart is a smart mobile tool cart equipped with RFID to perform automated inventory of your tool stock. Based on high-performance RFID technology, the XD Tool Cart provides an accurate management and tracking of your tools: acess control, check in/out, real-time inventory, calibration date traceability and many more.

Challenges

Managing tools is a major challenge in Aeronautics, from their inventory to the risks associated with FOD (Foreign Object Damage) or FME (Foreign Material Exclusion). Each year, tools left behind or lost during assembly or maintenance activities account for 30% of civil incidents and constitute a significant breach of safety. Poorly organized tool tracking can cause a significant loss of productivity: borrowing and return of tools, monitoring of stock and calibration dates, etc. are time-consuming and costly activities.

Request a quote

Features

Operation: Connected (On-premises client server or SAAS cloud server) / Stand Alone
Alerts: Sound / Visual (3-colour LEDs)
Server connection: Ethernet / Wi-Fi (optional)
Traceability capacity: Up to 400* RFID tagged materials
Autonomy (without AC power): Presence of a built-in inverter, only for the European market, 30 to 45 mins depending on use
External specifications: Access control by HF RFID badge reader (and/or PIN code), USB socket on front panel, 15’’ industrial touch screen, modular drawers (4 to 8 drawers; usable heights: 50 mm and/or 150 mm), manual unlocking of drawers in the event of a power cut, 1D / 2D optical reader (optional)
Configuration of drawers (large drawers always positioned at very bottom of roller cabinet):
- Configuration No. 1: 4 large drawers
- Configuration No. 2: 3 large drawers + 2 small drawers
- Configuration No. 3: 2 large drawers + 4 small drawers
- Configuration No. 4: 1 large drawer + 6 small drawers – Solution used in over 80% of cases
- Configuration No. 5: 8 small drawers
Smart foam (optional): enables detection of small metal tools that cannot be RFID tagged (up to 80 tools per smart foam and 1 smart foam per rollet cabinet)
Interior layout: Load capacity per drawer: 30 kg, Foam organizers (optional)
Software: NEXCAP® Embedded (cabinet), Web Client NEXCAP® (remote workstation)
Services: Installation and configuration, Installation of radio-frequency identification tags on existing tools
Compliance: CE and FCC
Voltage: 220V-240V / Current: 2A

* under nominal environmental, marking and layout conditions / depending on tool size and overall dimensions

Available options

Wi-Fi
Smart foam
1D/2D optical reader
Foam organizers
RFID scanner for association of RFID equipment in database

To manage which materials?

Management of hand tools: Wrenches, screwdrivers, pliers etc.
Management of specific portable tools: Riveters, pneumatic guns, riveting clamps, ADU, etc.
Management of tools requiring maintenance or calibration: Torque wrenches, etc.

Profits

Quality: automated tool management (inventory, calibration, maintenance)
Productivity: reduced tool search time (-30%)
Regulatory: safeguarding of access to tools (loan traceability)
Safety: mitigation of risks associated with tool loss (FOD/FME)
Smart access control: The XD Roller Cabinet only allows access to its content to authorized persons with an RFID badge. Once identified by their RFID badge, the user can easily access the roller cabinet to borrow or return one or more tools. An advanced locking system prevents manual opening of the drawers. Pin code access is also available (in addition to or as replacement for the badge system).
Accurate, automated inventory of roller cabinet contents: Once the XD Roller Cabinet drawers are locked, an automated content inventory is conducted in 10 seconds. Every tool movement is tracked and time-stamped (Who, What, When, Where) in order to effectively combat the risks associated with tool loss (FOD/FME). Thanks to the benefits of RFID technology, you have a precise and accurate real-time view of your tool inventory, locally or remotely, at any time.
Automatic tracking of Calibration and Maintenance dates: If an abnormal event is detected, the XD Roller Cabinet automatically forwards the alerts to the user interface and to the supervision station. This enables the user to automatically track the calibration and maintenance dates of their tools.
Remote supervision: The XD Roller Cabinet enables accurate monitoring of tool movements (loans/returns, frequency of use, dispatch for maintenance, etc.). This monitoring is available in the form of activity reports which can be consulted remotely via NEXCAP®.

Description des modules de NEXCAP®:

Things management, pour connecter facilement tous les objets :

Services d’enregistrement
Services de mise à jour
Gestion des autorisations
Service de monitoring
Gestion native de tous les périphériques Nexess (XL, XD, NexcapMat, etc)

Data Share :

API REST reference : Web services REST
Service de notifications et d’alertes
Module de rupture de protocole et format de transformation
Adaptateurs REST vers : SOAP, JMS, MQTT, COAP
Services d’import / export CSV

Core Platform :

API REST reference : Web services REST
Mobile SDK : outils de synchronisation et proxy
Mobile SDK : pour développement mobile “offline”, (power edge computing)
Middleware SDK : extensions, pour enrichir la plateforme

Interface WEB

Tableaux de bord
Cartographie
Fiche de traçabilité unique
Rapports temps réel et historique : inventaires, contrôles, activités
Administration : objets, localisations, droits d’accès, utilisateurs, profiles, ordres de travail
Export
